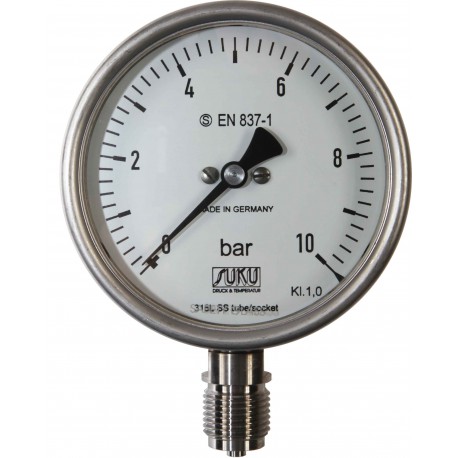

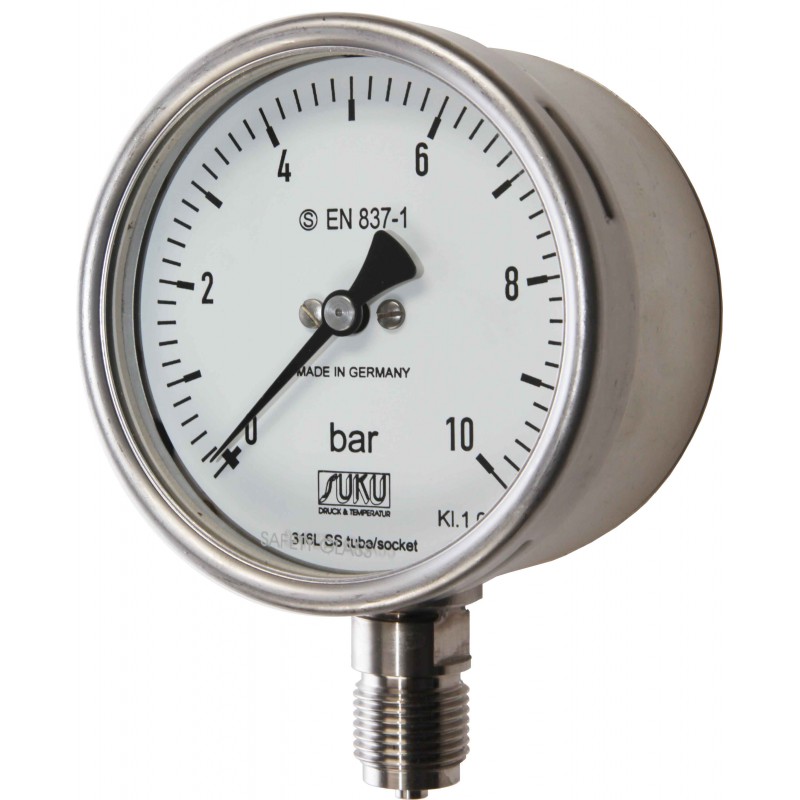

Type 6513, S3 Safety pressure gauge NS100, chemical version, connection bottom

Type 6513, S3 Safety pressure gauge NS100, chemical execution, connection bottom

Datasheet 6513

Model Range: 6513

All stainless steel safety pressure gauges according to EN 837-1/S3
Case stainless steel 1.4301
with blow-out back
Accuracy 1,0
Connection bottom
fillable

Measuring range
0...0,6 bar up to 0...1600 bar

Connection
G 1/2 B

OPTION
Measuring range up to 0...4000 bar
ATEX-approval
Connection back
You find the filled version in category "Glycerine pressure gauges".

The safety version of the pressure gauge comprises a burst-proof solid front between bourdon tube and window, a laminated safety glass as well as a blow-out back (according to EN 837-1/S3).

Price from

€176.72 *

Articlenumber Internal Variant Measuring Ranges (bar) Price
(incl. VAT *)
Standard -1...0 €176.72*
Standard 0...0,6 €176.72*
Standard 0...1 €176.72*
Standard 0...1,6 €176.72*
Standard 0...2,5 €176.72*
Standard 0...4 €176.72*
Standard 0...6 €176.72*
Standard 0...10 €176.72*
Standard 0...16 €176.72*
Standard 0...25 €176.72*
Standard 0...40 €176.72*
Standard 0...60 €218.48*
Standard 0...100 €218.48*
Standard 0...160 €218.48*
Standard 0...250 €198.61*
Standard 0...400 €218.48*
Standard 0...600 €218.48*
Standard 0...1000 €224.79*
Standard 0...1600 €331.18*
  • * All prices here are inclusive 19% VAT.
  • ** 3-4 days delivery time
  • *** 2-10 weeks delivery time, production goods, non-returnable
  • For shipping prices look at our pricing table. Free shipping in Germany for value of the ordered goods above 100.00 € (tax excl.).
