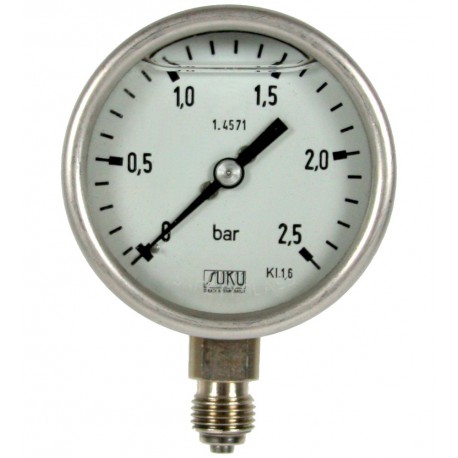

Type 6505, S3 Safety pressure gauge NS63, chemical version, connection bottom

Model Range: 6505

All stainless steel safety pressure gauge according to EN 837-1/S3
Case stainless steel  1.4301, fillable
Accuracy 1,6
Connection bottom

Measuring range
0...1 bar up to  0...1000 bar
negative or positive overpressure

Connection
G 1/4 B

Option
with glycerine filling (on request)

The safety version of the pressure gauges comprises a burst-proof solid front between bourdon tube and window, a laminated safety glass as well as a blow-out back (according to EN 837-1/S3).
The optional glycerine filling provides wear-protection for the measuring system through damping, should pulsating pressures and mechanical vibrations occur.

Price from

€106.90 *

Articlenumber Internal Variant Measuring Ranges (bar) Price
(incl. VAT *)
Standard -1...0 €106.90*
Standard -1...+0,6 €106.90*
Standard -1...+1,5 €106.90*
Standard -1...+3 €106.90*
Standard -1...+5 €106.90*
Standard -1...+9 €106.90*
Standard -1...+15 €106.90*
Standard 0...0,6 €106.90*
Standard 0...1 €106.90*
Standard 0...1,6 €106.90*
Standard 0...2,5 €106.90*
Standard 0...4 €106.90*
Standard 0...6 €106.90*
Standard 0...10 €106.90*
Standard 0...16 €106.90*
Standard 0...25 €106.90*
Standard 0...40 €106.90*
Standard 0...60 €106.90*
Standard 0...100 €109.60*
Standard 0...160 €109.60*
Standard 0...250 €109.60*
Standard 0...400 €109.60*
Standard 0...600 €109.60*
Standard 0...1000 €125.90*
