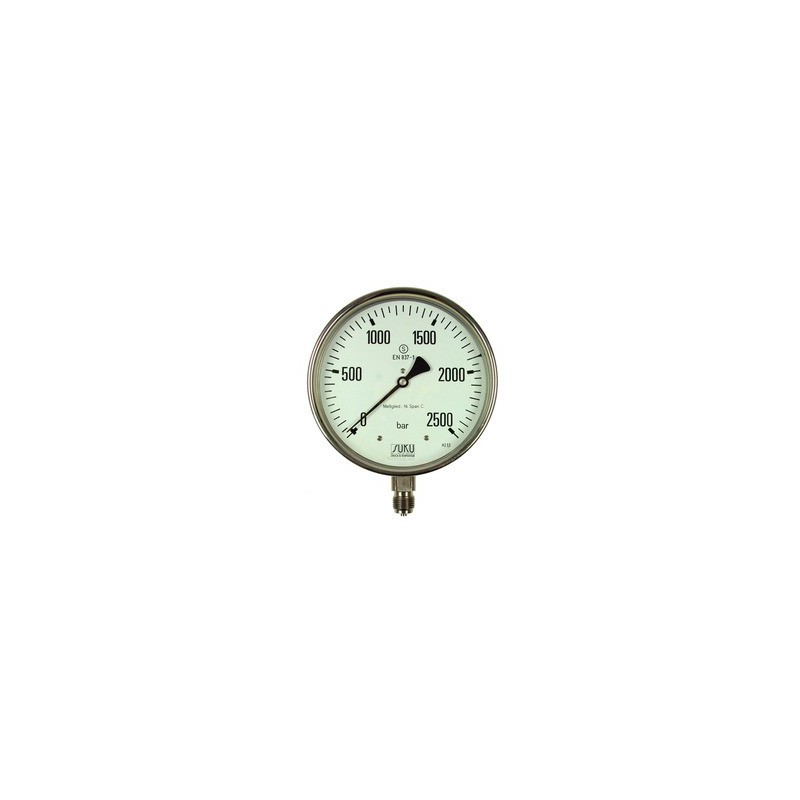

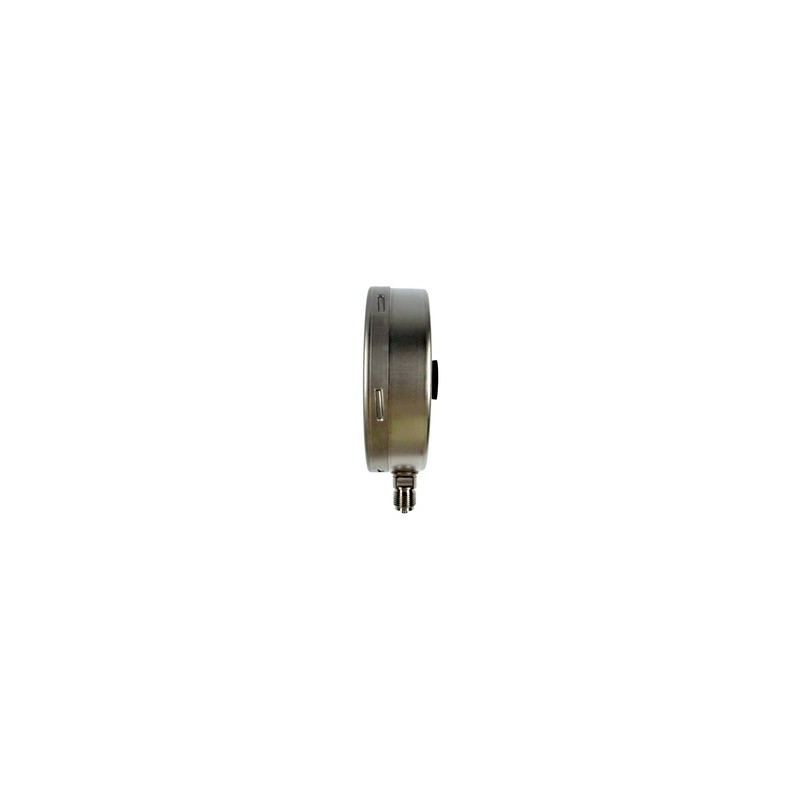

Type 6516, S3 Safety pressure gauge NS160, all stainless steel, connection bottom

Type 6516, S3 Safety pressure gauge NS160, all stainless steel, connection bottom

Datasheet 6516

Model Range: 6516

Chemical version safety pressure gauge according to EN 837-1/S3
Case stainless steel 1.4301
Accuracy 1,0
Connection bottom

Measuring range
0.....0,6 bar up to 0...1600 bar
0...2500 bar up to 0...4000 bar (on request)

Connection
G 1/2 B, from 2500 bar HD-connection

OPTION
ATEX-approval
You find the filled version in category "Glycerine pressure gauges".


The safety version of the pressure gauge comprises a burst-proof solid front between bourdon tube and window, a laminated safety glass as well as a blow-out back (according to EN 837-1/S3).

Price from

€259.66 *

Articlenumber Internal Variant Measuring Ranges (bar) Price
(incl. VAT *)
Standard -1...0 €259.66*
Standard 0...0,6 €259.66*
Standard 0...1 €259.66*
Standard 0...1,6 €259.66*
Standard 0...2,5 €259.66*
Standard 0...4 €259.66*
Standard 0...6 €259.66*
Standard 0...10 €259.66*
Standard 0...16 €259.66*
Standard 0...25 €259.66*
Standard 0...40 €259.66*
Standard 0...60 €259.66*
Standard 0...100 €259.66*
Standard 0...160 €259.66*
Standard 0...250 €259.66*
Standard 0...400 €259.66*
Standard 0...600 €259.66*
Standard 0...1000 €287.86*
Standard 0...1600 €497.30*
  • * All prices here are inclusive 19% VAT.
  • ** 3-4 days delivery time
  • *** 2-10 weeks delivery time, production goods, non-returnable
  • For shipping prices look at our pricing table. Free shipping in Germany for value of the ordered goods above 100.00 € (tax excl.).
