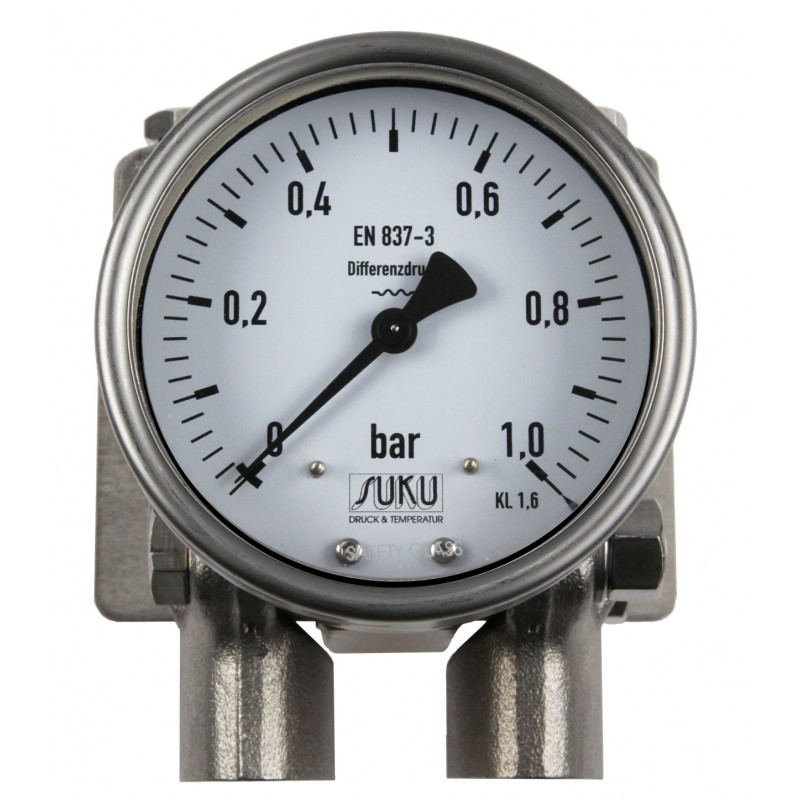

Type 5599, Differential pressure gauge NS 100, PN250 with diaphragm
Model Range: 5599
Differential pressure gauge PN250 with diaphragm
Stainless steel
Accuracy class 1,6
Connection bottom, flange connection G½ female
Measuring ranges
0...60 mbar up to 0...400 mbar
0...0,6 bar up to 0...25 bar
Pressure connection
Flange connection similar to DIN 61518 G½ female
1/4 NPT, 1/2NPT female; G½, 1/4NPT, 1/2NPT male
cutting ring screw connection
Nominla pressure
PN250
Options
Case NS160
PN400
with contacts
These measuring instruments are suitable for liquid and gaseous media.
High corrosion resistant, rinsable pressure chambers
