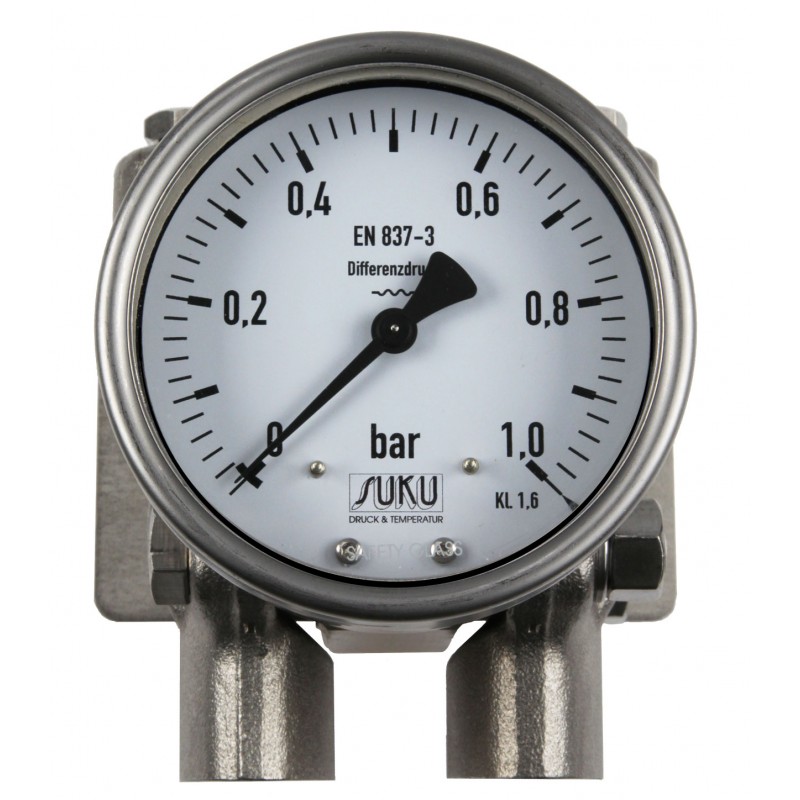

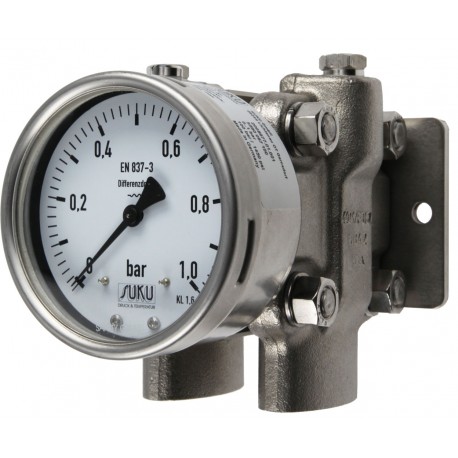

Typ 5593, Differential pressure gauge with diaphragm
Model Range: 5593
Differential pressure gauge with diaphragm
Stainless steel
Accuracy class 1,6
Connection bottom, flange connection G½ female
Measuring ranges
0...40 mbar up to 0...400 mbar
0...0,6 bar up to 0...25 bar
Pressure connection
Flange connection similar to DIN 61518 G½ female
1/4 NPT, 1/2NPT female; G½, 1/4NPT, 1/2NPT male
cutting ring screw connection
Nominla pressure
PN40
Options
PN100
with contacts
These measuring instruments are suitable for liquid and gaseous media.
High corrosion resistant, rinsable pressure chambers
