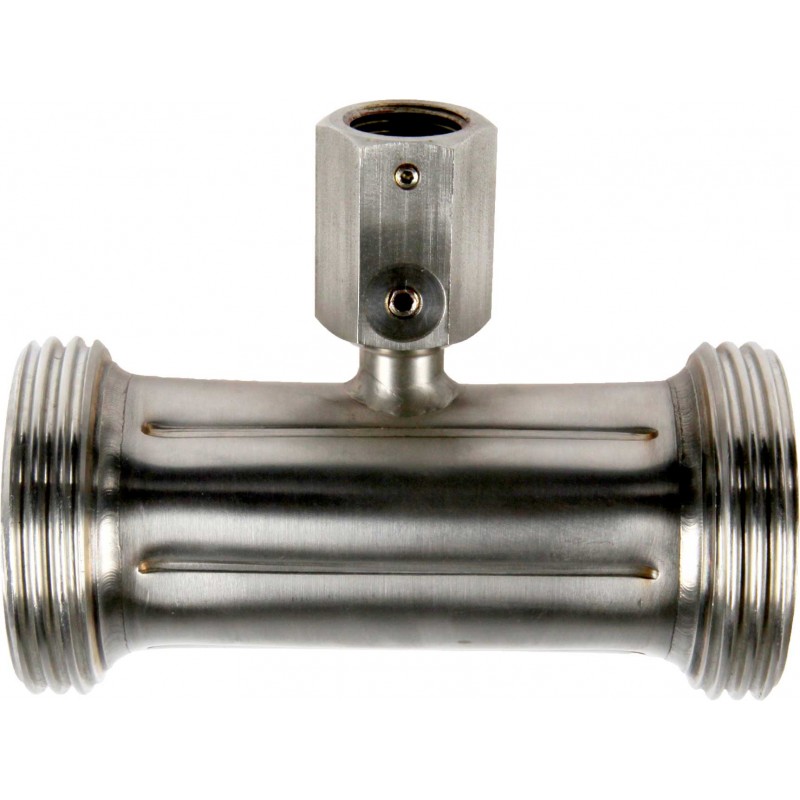

Type 1060 IN-LINE seals
IN-LINE seals for
industrial applications or with hygienic connection
Body and diaphragm in stainless steel
Diaphragm welded with body
absolute no dead spaces
or cross section constructions
Connections - industrial applications
- Celluar type
- Flange connection
Hygienic connection
- Male thread

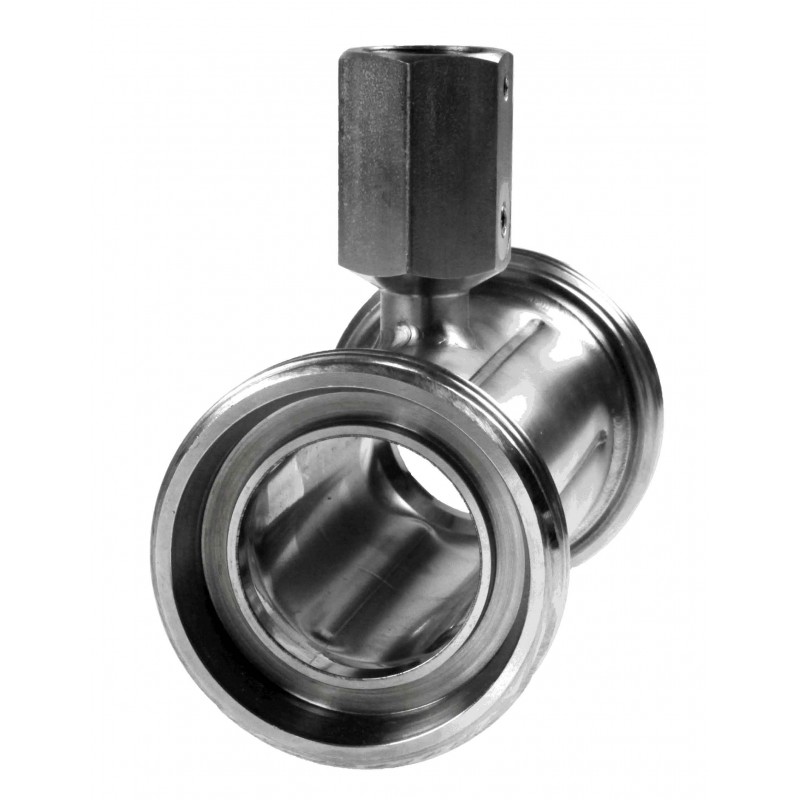

- Clamp
- Flange
Instrument connection
G 1/2 female
Stainless steel
Process connection
DIN EN 1092-1
ASME B16.5 RF
Male thread acc. to DIN 11851
Male thread acc. to DIN 11864-1
Clamp acc. to DIN 32676
Clamp acc. to ISO 2852
Pressure ranges
PN 16 up to PN 400
Filling
Silicone oil or plant oil
Options
High temperatur oil
Special materials to meet extreme reqiuirements
Capillary line or cooling element between pressure gauge and chemical seal
Applications
Food industry
Biochemistry
Analytical technology
Filling systems
Chemical seals are used when the measured media can falsify the measured pressure due to too high temperature, high viscosity (pastious measured media) or when there is a tendency for this media to cristallize.
Chemical seals transfer the process pressure to the pressure measuring instrument but the chemical seal diaphragms are hermetically separated from the measured media and the measuring instrument.
Through the different process connections given pipe chemical seals are suitable for fast disconnection or fixed installation in pipelines and for use with flowing, highly viscous measured media more especially in the food insutry, biochemistry, analytical technology and in filling plants.
If you are interest in please send us following information:
- Connection for measuring instrument
- Pressure range
- to measure medium
- other technical specifications for chemical seal (see data sheet)
