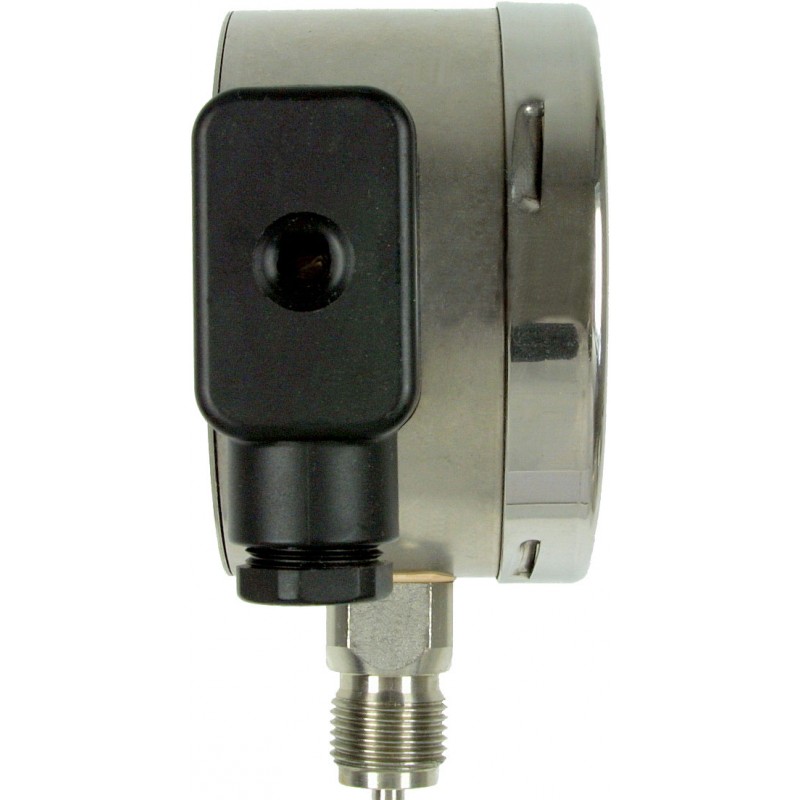

Pressure gauge in safety version according to EN 837-1/S3with current output 4...20 mACase stainless steelAccuracy 1,0Connection bottom
Measuring range0...2,5 bar up to 0...400 bar, -1/+3...-1/+24 bar
Connection G 1/2 B
Output signal4...20 mA, 2-wire
Power supply10...30 VDC
OptionsSilicone oil filling - on requestOutput signal 0...10 V or 0...20 mA
The special feature of transducers with local display is an analog display of the measured value on side and the output of a corresponding electrical standard signal (mostly 4...20 mA) for transmitting the measured value. A pressure related mechanical measuring element provides the local display and simultaneously controls a magneticfield dependent sensor. The integrated electronics supply the standardized signal.
Availability date:
Price from
€689.72 *
