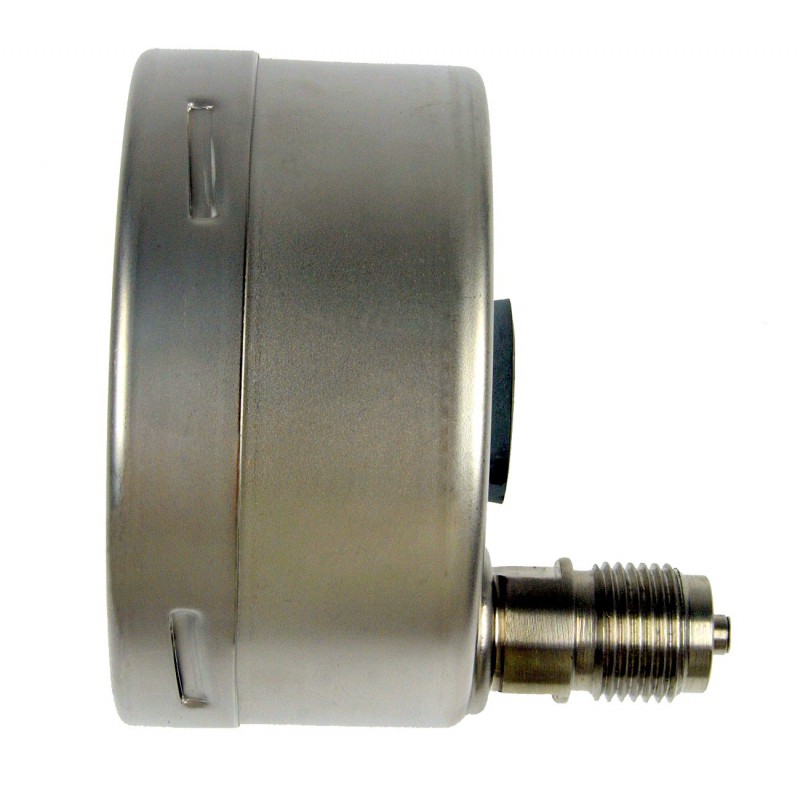

Type 6328, Bourdon tube pressure gauge NS100, all stainless steel, high-temperature up to 300°C
Pressure gauge with Bourdon tube
all stainless steel 1.4301
Accuracy 1,0 according EN 837-1
Connection eccentric back
Medium temperature up to 300°C
Measuring ranges
0...0,6 bar up to 0...1600 bar
negative or positive overpressure
Connection
G 1/2 B
OPTION
ATEX-approval
These all stainless steel pressure gauges are designed for harsh conditions and to meet the stringent demands of pressure measurement in production plants of the chemical industry and in other comparable industrial sectors. The use of high quality materials such as stainless steel, both for the measuring system and case, provides resistance to aggressive media and envirenments.
For some industrial applications it is neccessary to use pressure gauges for high temperatures. This bourdon tube pressure gauge is resistant against high medium temperatures up to 300°C. Because of this high temperature it is not more possible to deliver that with oil filling.
For an offer we need following specifications:
- Measuring range
- Connection (thread)
