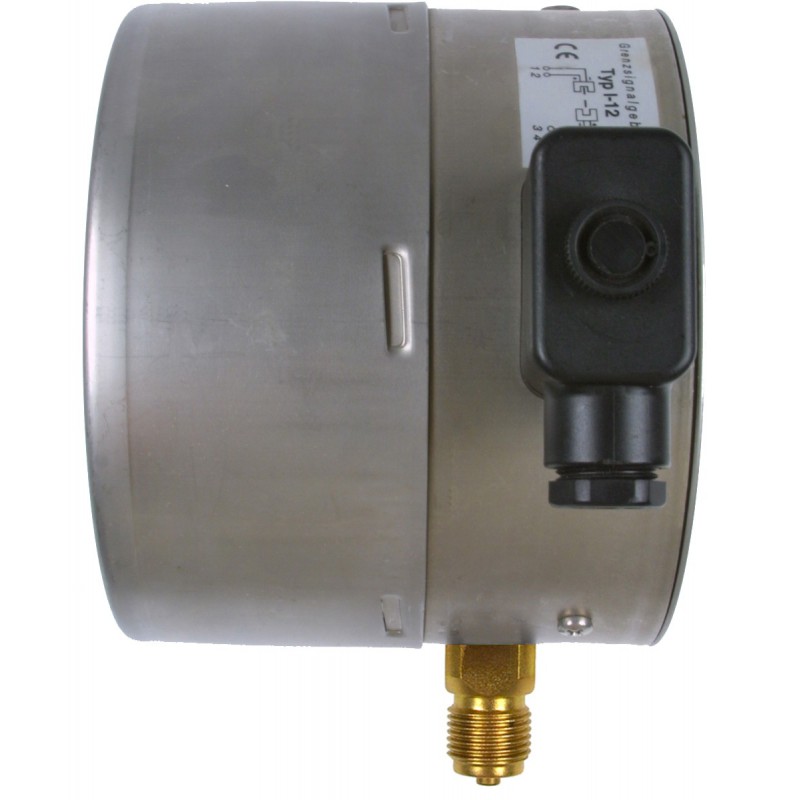

Type 6211, Contact pressure gauge NS160, connection bottom

Datasheet 6211

Model Range: 6211

Pressure gauge with bourdon tube in high-grade version
with magnetic snap action contact or inductive contact
Case stainless steel 1.4301
Accuracy: 1,0
Connection bottom, brass

Measuring range
0...1 bar up to 0...1600 bar

Connection
G 1/2 B

Contacts:
see datasheet

This instrument is also available with connection back as type 6411 resp. with silicone oil filling as model 8111.

Contact pressure gauges with electrical alarm contacts are suitable for controlling or regulating process sequences. The contacts open or close electrical circuits in relation to the position of the pointer on the pressure gauge.

Price from

€411.74 *

Articlenumber	Internal Variant	Measuring Ranges (bar)	Price (incl. VAT )*

6211 116 101***	Magnetic snap-action contact single (NO switch)	-1...0	€411.74*
6211 116 102***	Magnetic snap-action contact single (NC switch)	-1...0	€411.74*
6211 143 121***	Magnetic snap-action contact double (NC, NO switches)	-1...+1,5	€458.98*
6211 169 101***	Magnetic snap-action contact single (NO switch)	0...1	€411.74*
6211 170 101***	Magnetic snap-action contact single (NO switch)	0...1,6	€411.74*
6211 172 101***	Magnetic snap-action contact single (NO switch)	0...2,5	€411.74*
6211 172 112***	Magnetic snap-action contact double (NO, NC switches)	0...2,5	€458.98*
6211 173 112***	Magnetic snap-action contact double (NO, NC switches)	0...4	€458.98*
6211 173 121***	Magnetic snap-action contact double (NC, NO switches)	0...4	€458.98*
6211 174 101***	Magnetic snap-action contact single (NO switch)	0...6	€411.74*
6211 174 102***	Magnetic snap-action contact single (NC switch)	0...6	€411.74*
6211 174 112***	Magnetic snap-action contact double (NO, NC switches)	0...6	€458.98*
6211 174 121***	Magnetic snap-action contact double (NC, NO switches)	0...6	€458.98*
6211 174 122***	Magnetic snap-action contact double (NC, NC switches)	0...6	€458.98*
6211 175 101***	Magnetic snap-action contact single (NO switch)	0...10	€411.74*
6211 175 111***	Magnetic snap-action contact double (NO switch)	0...10	€458.98*
6211 175 112***	Magnetic snap-action contact double (NO, NC switches)	0...10	€458.98*
6211 175 121***	Magnetic snap-action contact double (NC, NO switches)	0...10	€458.98*
6211 176 101***	Magnetic snap-action contact single (NO switch)	0...16	€411.74*
6211 176 111***	Magnetic snap-action contact double (NO switch)	0...16	€458.98*
6211 176 112***	Magnetic snap-action contact double (NO, NC switches)	0...16	€458.98*
6211 176 121***	Magnetic snap-action contact double (NC, NO switches)	0...16	€458.98*
6211 178 102***	Magnetic snap-action contact single (NC switch)	0...25	€411.74*
6211 178 112***	Magnetic snap-action contact double (NO, NC switches)	0...25	€458.98*
6211 178 121***	Magnetic snap-action contact double (NC, NO switches)	0...25	€458.98*
6211 179 111***	Magnetic snap-action contact double (NO switch)	0...40	€458.98*
6211 179 121***	Magnetic snap-action contact double (NC, NO switches)	0...40	€458.98*
6211 180 112***	Magnetic snap-action contact double (NO, NC switches)	0...60	€563.11*
6211 180 121***	Magnetic snap-action contact double (NC, NO switches)	0...60	€563.11*
6211 181 101***	Magnetic snap-action contact single (NO switch)	0...100	€515.87*
6211 181 121***	Magnetic snap-action contact double (NC, NO switches)	0...100	€563.11*
6211 182 112***	Magnetic snap-action contact double (NO, NC switches)	0...160	€563.11*
6211 182 121***	Magnetic snap-action contact double (NC, NO switches)	0...160	€563.11*
6211 184 112***	Magnetic snap-action contact double (NO, NC switches)	0...250	€563.11*
6211 184 121***	Magnetic snap-action contact double (NC, NO switches)	0...250	€563.11*
6211 186 112***	Magnetic snap-action contact double (NO, NC switches)	0...400	€563.11*
6211 186 121***	Magnetic snap-action contact double (NC, NO switches)	0...400	€563.11*
6211 186 122***	Magnetic snap-action contact double (NC, NC switches)	0...400	€563.11*
6211 187 111***	Magnetic snap-action contact double (NO switch)	0...600	€563.11*
