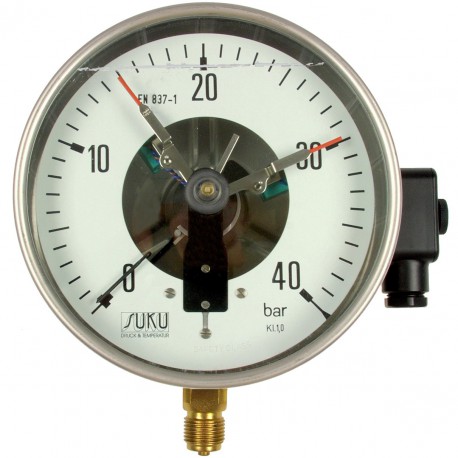

Type 8111 Contact pressure gauge NS160 with oil filling
Model Range: 8111
Pressure gauge with Bourdon tube in high-grade version
with magnetic snap action contact or inductive contact
Case stainless steel 1.4301
Accuracy: 1,0
Connection bottom, brass
Measuring range
0...1 bar up to 0...1600 bar
Connection
G 1/2 B
others on request
Contacts:
see datasheet
This instrument is also available with connection back as type 8211.
Contact pressure gauges with electrical alarm contacts are suitable for controlling or regulating process sequences. The contacts open or close electrical circuits in relation to the position of the pointer on the pressure gauge.
