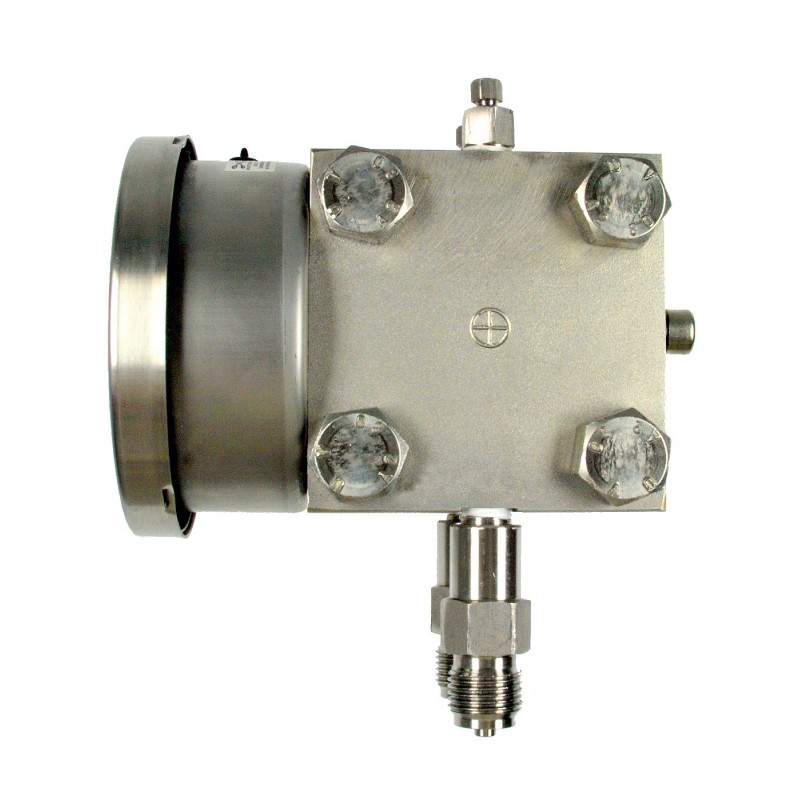

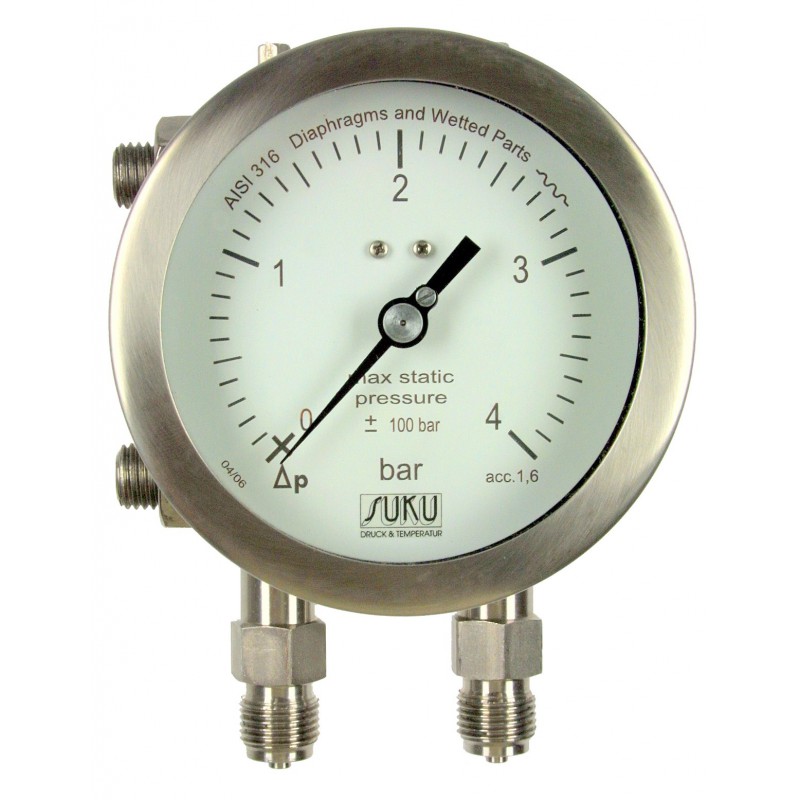

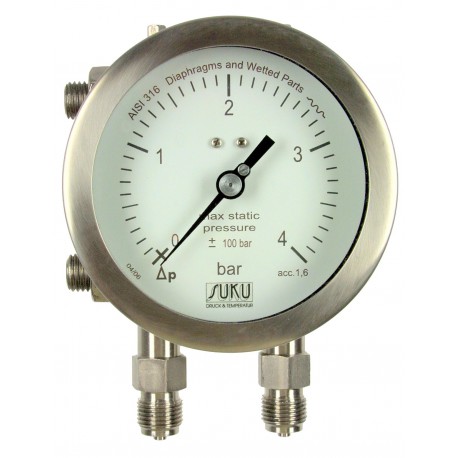

Type 5670, Differential pressure gauge NS100 with diaphragm, all stainless steel
Model Range: 5670
Differential pressure gauge with diaphragm
all stainless steel
Accuracy 1,6
Connection bottom
Measuring range
0...25 mbar up to 0...400 mbar
0...0,6 bar up to 0...25 bar
Connection
2x 1/4 NPT female (Standard)
Version
for max. static pressure up to 100 bar
Options
2x G 1/2 male
max. stat. pressure up to 400 bar
with magnetic snap-action or inductive contacts
also as nominal size 160
Depending on the application the gauges can be delivered with liquid filling.
For an offer we need following specifications:
- Measuring range
- Connection (thread)
- max. static pressure
- Quantity and kind of contacts
- Case diameter
