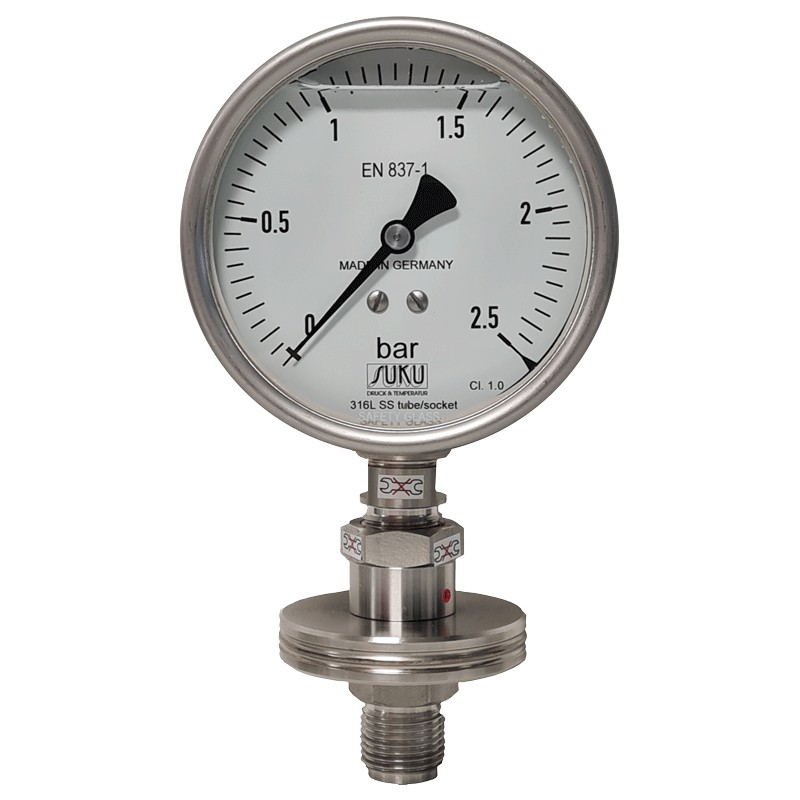

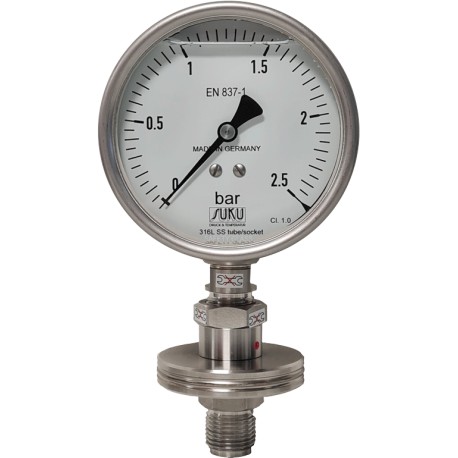

Type 6325 1007 Bouron tbe pressure gauge with diahragm seal monobloc
Model Range: 6325 1007
Assambly bourdon tube pressure gauge all stainless steel with
diaphragm seal monobloc
Case 1.4301
Accuracy class 1,0 acc. to EN 837-1
Connection position bottom
fillable
Diaphragm seal monobloc
Material 1.4571
Process connection G1/2 B with channel drilling 10 mm
Ranges
0...1 bar up to 0...40 bar
The assembly can also be manufactured with a rear connection and NS 160. Please ask.
