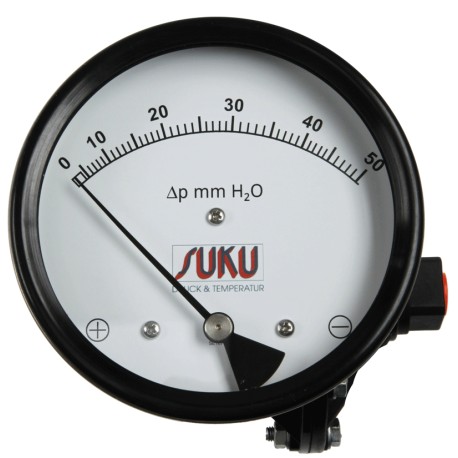

Type 5603, Differential pressure instrument, diaphragm type
Model Range: 5603
Differential pressure instrument - diaphragm type, size 112 mm
Flow of the measuring medium is not permitted
Accuracy class +/- 3% of full scale
Connection in.line
Differential pressure measuring ranges
0...0,25 up to 1250 mm H2O; 0-1 up to 50 inch H2O
Pressure connection variants
1/4"BSP, 1/4"NPT
Maximum static pressure
2,4 bar
Please include the following in your request:
Nominal size
Display area / range
Case material
Body material
Sealing material
Connection and connection position
Mounting / Options
Please refer to the associated data sheet for information.
