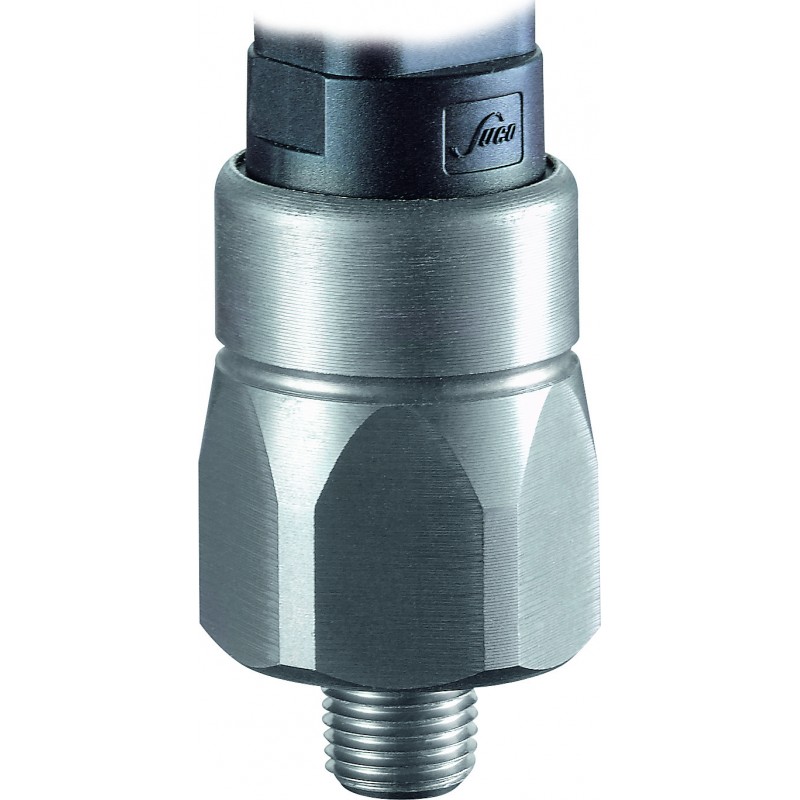

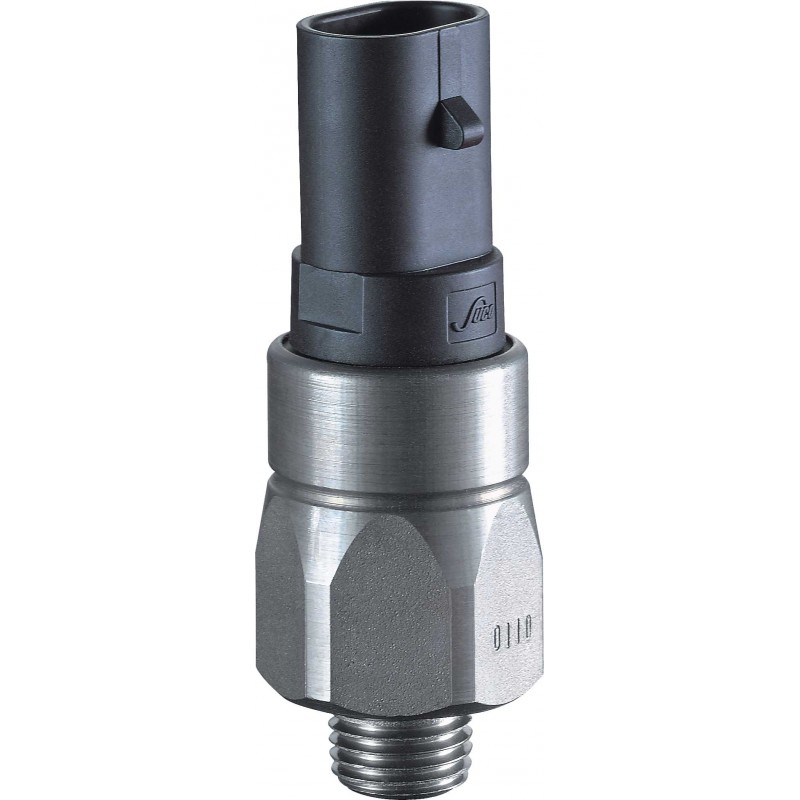

Type 0412 SUCO-diaphragm pressure switch PLUS, AMP Superseal 1.5®
SUCO – Pressure switch PLUS
Diaphragm pressure switches, up to 42 V
Zinc-plated steel (CrVI-free)
with integrated plug AMP Superseal 1.5®
and supplementary function
Adjustment ranges:
0,1… 1 bar
0,5… 3 bar
1...10 bar
10...20 bar
20...50 bar
Connections male thread:
G 1/4
G 1/8
M 10x1 zyl.
M 10x1 keg.
M 12x1,5 zyl.
NPT 1/8
Overpressure saftey up to:
300 bar
Supplementary functions
Resistor - Diagnostics function
Varistor - Overvoltage protection
NTC thermistor - Filter monitoring
PTC thermistor, LED, Multifuse, PPTC on request
These diaphragm pressure switches are available with integrated plug and intelligent electronical additional functions. These additional functions extended the possibilities of the mechanical pressure switches with a lot of features.
