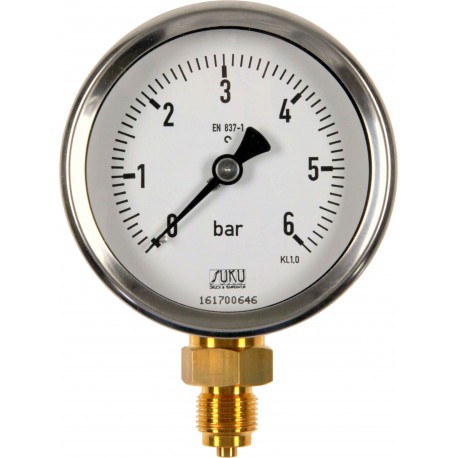

Type 4882 Bourdon tube pressure gauge with glycerine filling, NS80, case stainless steel, connection bottom

Type 4882 Bourdon tube pressure gauge NS80, case stainless steel, connection bottom

Datasheet 4882

Model Range: 4882

Bourdon tube pressure gauge with glycerine filling
according to DIN EN 837-1
Case stainless steel
Accuracy 1,0
Connection bottom

Measuring range:
0...0,6 bar up to 0...600 bar

Connection size
G 1/2 B brass

OPTIONS
with 3-hole-flange back

This pressure gauge version is suitable for high demands in accuracy of indication and construction. They can be used in all applications where liquid or gaseous media are not highly viscous and do not attack copper alloys or crystallize.

Price from

€174.10 *

Articlenumber Internal Variant Measuring Ranges (bar) Price
(incl. VAT *)
Standard -1...0 €174.10*
Standard 0...0,6 €174.10*
Standard 0...1 €174.10*
Standard 0...1,6 €174.10*
Standard 0...2,5 €174.10*
Standard 0...4 €174.10*
Standard 0...6 €174.10*
Standard 0...10 €174.10*
Standard 0...16 €174.10*
Standard 0...25 €174.10*
Standard 0...40 €174.10*
Standard 0...60 €175.76*
Standard 0...100 €175.76*
Standard 0...160 €175.76*
Standard 0...250 €175.76*
Standard 0...400 €175.76*
Standard 0...600 €175.76*
  • * All prices here are inclusive 19% VAT.
  • ** 3-4 days delivery time
  • *** 2-10 weeks delivery time, production goods, non-returnable
  • For shipping prices look at our pricing table. Free shipping in Germany for value of the ordered goods above 100.00 € (tax excl.).

Similar Items

Type 6035, Bourdon tube pressure gauge with glycerine filling, NS63, all stainless steel, connection bottom, LOW-COST
Type 6035, Bourdon tube pressure gauge with glycerine filling, NS63, all stainless steel, connection bottom, LOW-COST €55.34
Type 6325, Bourdon tube pressure gauge with glycerine filling, NS100, chemical version, connection bottom
Type 6325, Bourdon tube pressure gauge with glycerine filling, NS100, chemical version, connection bottom €116.98
