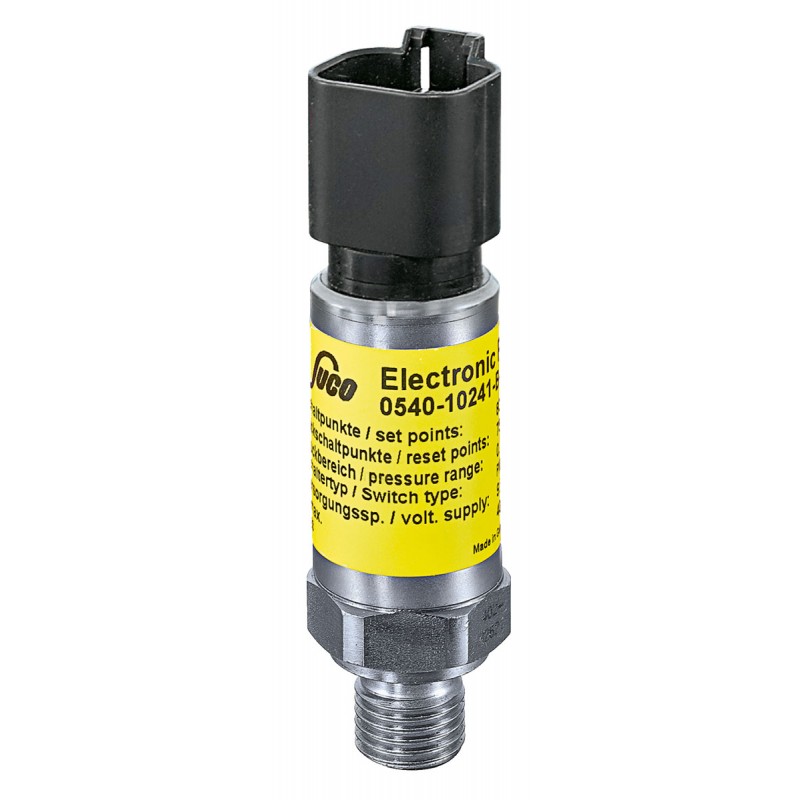

Type 0540 SUCO Electronic pressure switch, hex 22 with two switching outputs
Model Range: 0540
SUCO Electronic pressure switch, hex 22
with two switching outputs
NO / NO
Case and wetted parts: Stainless steel
Adjustment of switching point and hysteresis at factory
Number of transistor outputs
2 PNP-outputs (High Side N-channel MOSFET)
Standard adjustment ranges
0...10 bar
0...25 bar
0...100 bar
0...250 bar
0...600 bar
Pressure connection
G 1/4 - ISO 1179-2 (DIN 3852), Form E
G 1/4 - DIN 3852-A
NPT 1/8
NPT 1/4
M 10x1 zyl. DIN 3852-A
7/16-20 UNF
9/16-18 UNF
M 14x1,5 - DIN EN ISO 9974-2 (DIN 3852-11) Form E
Electrical connection
• M12x1 - DIN EN 61076-2-101-A
• Bayonet ISO 15170-A1-4.1 (DIN 72585-A1-4.1)
• Deutsch DT04-3P
• Cable connection (length of cable 2 m standard)
