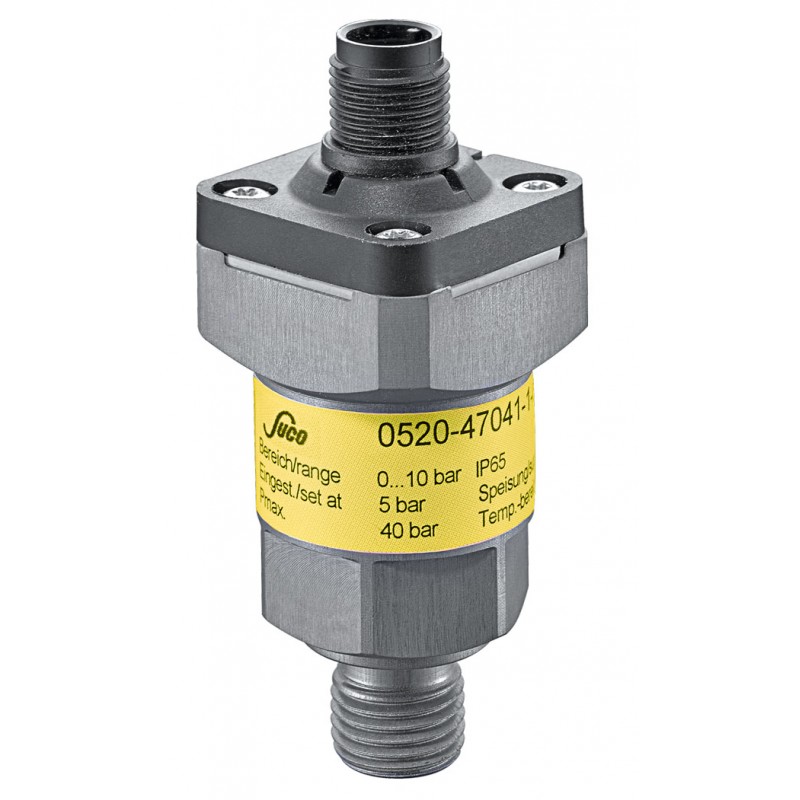

Type 0520 SUCO Electronic pressure switch hex 27 und hex 30, adjustable by user
Model Range: 0520
SUCO Electronic pressure switch hex 27 und hex 30,
adjustable by user
NO / NC
Case: zinc-plated steel
Measuring cell: Ceramic
Adjustment range
0...10 bar
0...100 bar
0...250 bar
Pressure connection
G 1/4 - ISO 1179-2 (DIN 3852), form E
G 1/4 - female
Seal material- Application areas
NBR - Hydraulic/machine oil, air, nitrogen
FKM - Hydraulic fluids (HFA, HFB, HFD), petrol/gasoline
Electrical connection

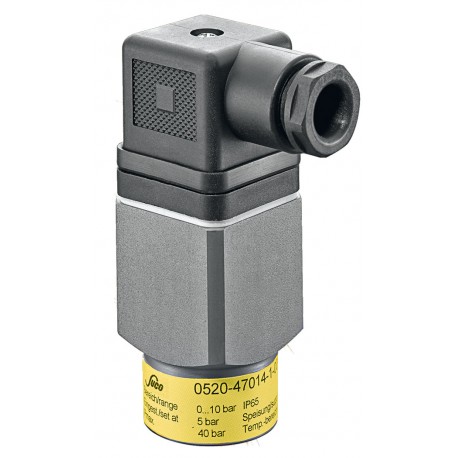

• DIN EN 175301-803-A (DIN 43650-A),
socket device included
• M12x1 - DIN EN 61076-2-101-A
