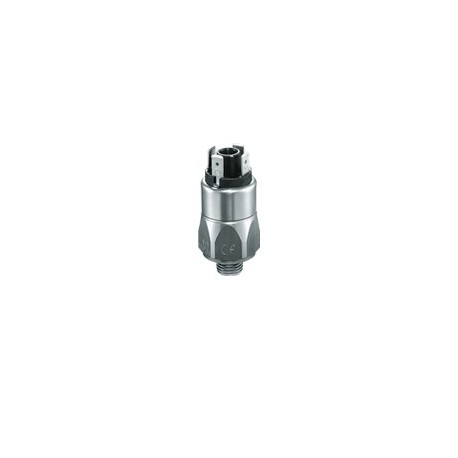

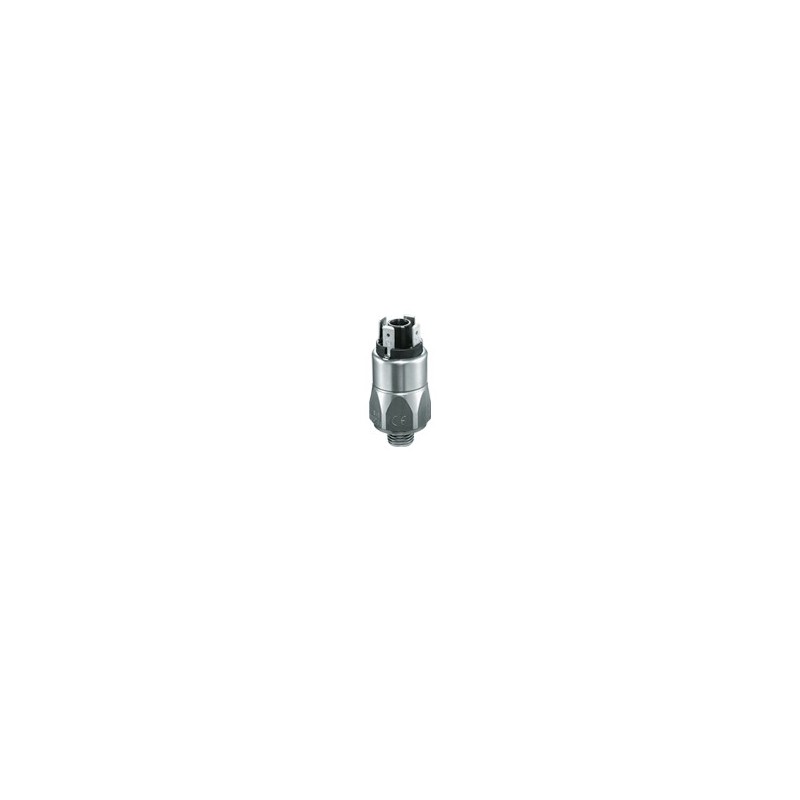

Type 0186 SUCO-Diaphragm pressure switch, body stainless steel, max. 250 V
Model Range: 0186
SUCO - Diaphragm pressure switch, 250 V
Case stainless steel
Changeover
with push-on terminal
Adjustment range:
0,5 ... 5 bar up to 10 ... 100 bar
Connection
G 1/4 male
Overpressure resistance:
up to 300 bar
Diaphragm pressure switches with high SUCO - quality standard. Pressure switches with push-on terminal special microswitches, executed as changeover switch. The switching point is easy adjustable. High overpressure stability, adjustable hysteresis.
Example of use:
Plant engineering, conveyor engineering, air engineering, roller engineering, cleaning systems, process technology
