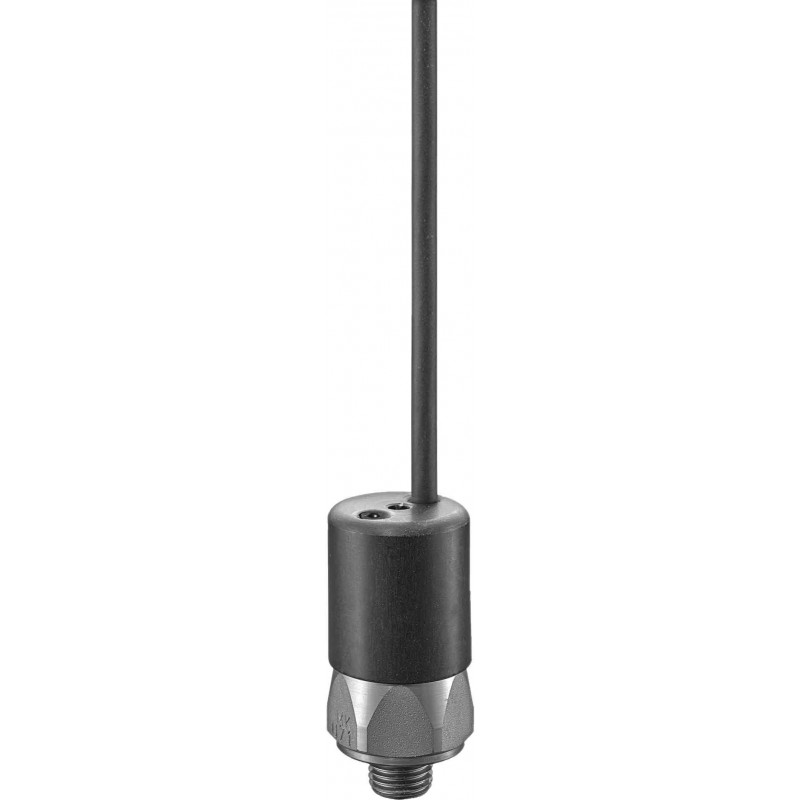

Type 0240 SUCO-Diaphragm pressure switch, case steel, with cable, A/F 27
SUCO - Diaphragm pressure switch, A/F27
Case steel galvanized
overload safety up to 300 bar
Protection class 2
with protection cap
Aluminium
Connection
with cable 2 m (standard length)
Adjustable ranges
0,3 ... 1,5 bar
1 ... 10 bar
10 ... 20 bar
20 ... 50 bar
mechanical connections
G 1/4
NPT 1/8
NPT 1/4
7/16-20 UNF
9/16-18 UNF
The diaphragm pressure switch type 0240 belongs to the manufactured push button switches and is available with all customary plug systems and customised cable lengths. These push button switch usually reach the protective kind IP67 or IP6K7K. This is required in particular in the utility vehicle construction, the mobile hydraulics or similarly demanding uses.
With this switch the plug connections can be moved in areas poor in vibration or climatic uncritical.
For that type the switch point could be adjusted in factory or later on side.
Please choose the seal according to your application:
NBR = Hydraulic / machine oil, turpentine, heating oil, air etc.
EPDM = Hydrogen, acetylene, ozone, brake fluid, etc.
EPDM-W270 = Drinkable water (pmax ≤35 bar)
FKM = Hydraulic fluids (HFA, HFB, HFC, HFD), petrol/gasoline etc.
Silicon = Water, Food, air etc. (pmax ≤35 bar)
HNBR = Hydraulic oil, machine oil, ester based bio oil
Please send us your inquiry with specification like follows:
- Adjustable range
- Connection thread
- Sealing material
