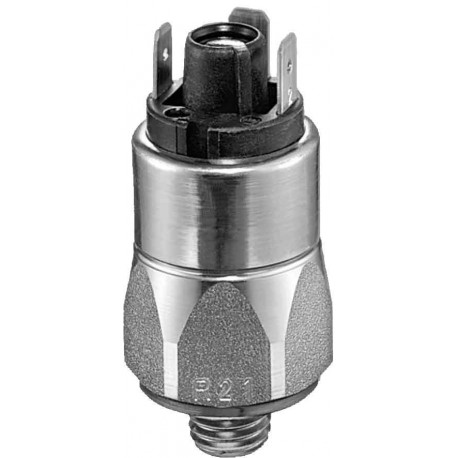

Type 0191 SUCO-Piston pressure switch, body steel, changeover, 24V
Model Range: 0191
SUCO - Piston pressure switch, max. 24 V
Case zinc-plated steel
Changeover with gold contacts
with spade terminal
Adjustment ranges
50...200 bar
Connections
G 1/4
M10x1
M12x1,5 cyl.
NPT 1/8
NPT 1/4
7/16-20 UNF
9/16-18 UNF
Overload safety:
up to 300 bar
Piston pressure switch with high SUCO - quality standard. Pressure switches with special microswitche as changeover with gold contacts. The switching point is easy adjustable.
High overpressure stability, adjustable hysteresis.
