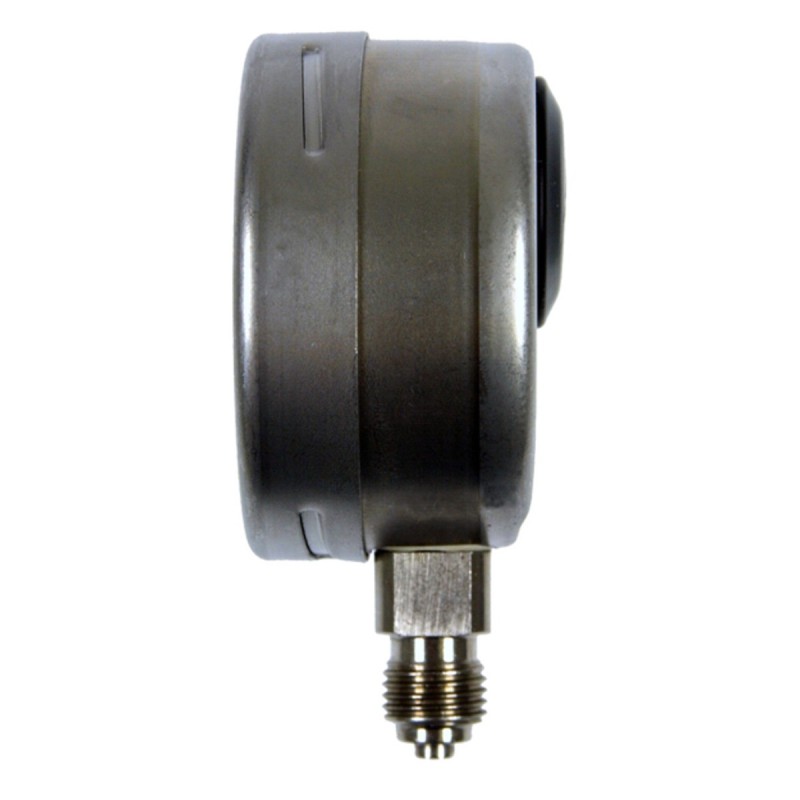

Type 6322 Bourdon tube pressure gauge NS63, all stainless steel, high-temperature up to 300°C

Type 6322 Bourdon tube pressure gauge NS63, all stainless steel, high-temperature up to 300°C

Datasheet 6322

Model Range: 6322

Pressure gauge with Bourdon tube
all stainless steel 1.4301
Accuracy 1,0 according EN 837-1
Connection bottom
Media temperatures up to 300°C

Measuring ranges
0...0,6 bar up to 0...1600 bar
negative or positive overpressure

Connection
G 1/4 B

OPTION
ATEX-approval

These all stainless steel pressure gauges are designed for harsh conditions and to meet the stringent demands of pressure measurement in production plants of the chemical industry and in other comparable industrial sectors. The use of high quality materials such as stainless steel, both for the measuring system and case, provides resistance to aggressive media and envirenments.

Price from

€147.68 *

Articlenumber Internal Variant Measuring Ranges (bar) Price
(incl. VAT *)
Medium temperature up to 300°C -1...0 €147.68*
Medium temperature up to 300°C -1...+0,6 €147.68*
Medium temperature up to 300°C -1...+1,5 €147.68*
Medium temperature up to 300°C -1...+3 €147.68*
Medium temperature up to 300°C -1...+15 €147.68*
Medium temperature up to 300°C 0...1 €147.68*
Medium temperature up to 300°C 0...1,6 €147.68*
Medium temperature up to 300°C 0...2,5 €147.68*
Medium temperature up to 300°C 0...4 €147.68*
Medium temperature up to 300°C 0...6 €147.68*
Medium temperature up to 300°C 0...10 €147.68*
Medium temperature up to 300°C 0...16 €147.68*
Medium temperature up to 300°C 0...25 €147.68*
Medium temperature up to 300°C 0...40 €147.68*
Medium temperature up to 300°C 0...60 €171.12*
Medium temperature up to 300°C 0...100 €171.12*
Medium temperature up to 300°C 0...250 €171.12*
Medium temperature up to 300°C 0...400 €171.12*
Medium temperature up to 300°C 0...600 €171.12*
Medium temperature up to 300°C 0...1000 €197.90*
  • * All prices here are inclusive 19% VAT.
  • ** 3-4 days delivery time
  • *** 2-10 weeks delivery time, production goods, non-returnable
  • For shipping prices look at our pricing table. Free shipping in Germany for value of the ordered goods above 100.00 € (tax excl.).
