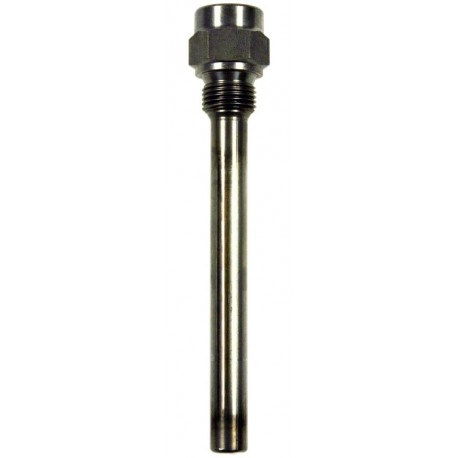

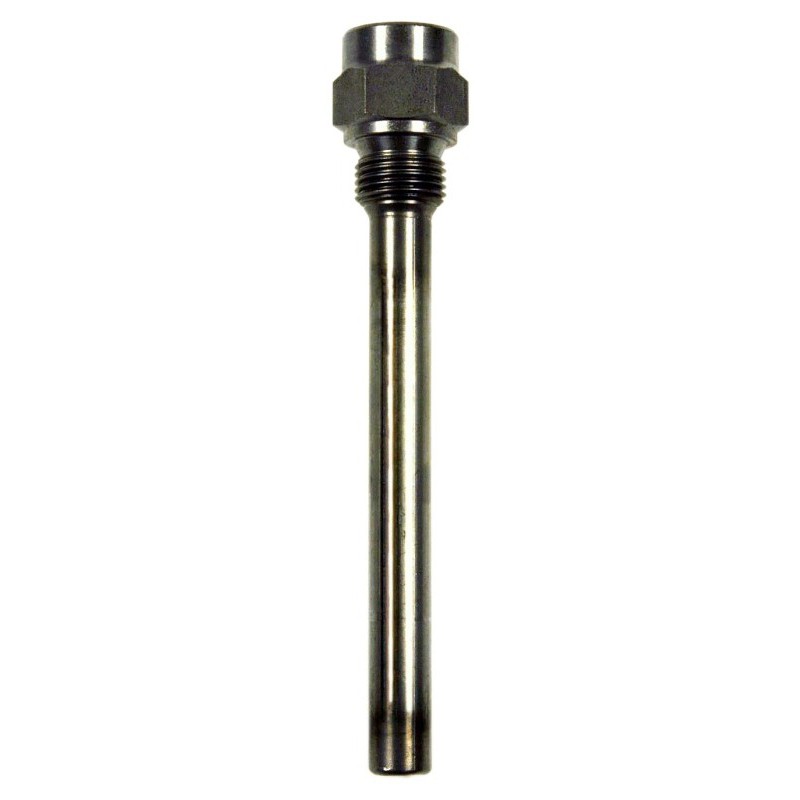

Type 976 Protection tube DIN43772 for screw in, Form 5 for industrial thermometers

Type 976 Protection tube for screw in, Form 5, DIN43772

Datasheet 976

Model Range: 976

Protection tube for screw in
twop parts, Form 5 (type BD)
DIN 43772
for industrial thermmeters

Material
Brass
Steel
Stainless steel

Attribution length
Length   45 mm for stem length Thermometer  63 mm
Length   82 mm for stem length Thermometer 100 mm
Length 142 mm for stem length Thermometer 160 mm
Length 182 mm for stem length Thermometer 200 mm
Length 232 mm for stem length Thermometer 250 mm
Length 382 mm for stem length Thermometer 400 mm

Diameter
d1 = 11 mm
F1 = 14 mm

Connection
G 1/2 female / male

Thermowells are used to separate the thermometer from the medium. In addition, thermowells protect the thermometers from aggressive media and facilitate replacement of thermometers.

Price from

€23.80 *

Articlenumber Internal Variant Plain Stem Length (mm) Price
(incl. VAT *)
G 1/2, brass 45 mm €27.37*
G 1/2, brass 82 mm €28.44*
G 1/2, brass 142 mm €30.46*
G 1/2, brass 182 mm €31.30*
G 1/2, brass 232 mm €35.70*
G 1/2, steel 45 mm €23.80*
G 1/2, steel 82 mm €24.75*
G 1/2, steel 142 mm €26.89*
G 1/2, steel 182 mm €29.99*
G 1/2, steel 232 mm €34.63*
G 1/2, stainless steel 45 mm €33.92*
G 1/2, stainless steel 82 mm €34.63*
G 1/2, stainless steel 142 mm €36.06*
G 1/2, stainless steel 182 mm €37.96*
G 1/2, stainless steel 232 mm €58.31*
G 1/2, stainless steel 382 mm €86.87*
  • * All prices here are inclusive 19% VAT.
  • ** 3-4 days delivery time
  • *** 2-10 weeks delivery time, production goods, non-returnable
  • For shipping prices look at our pricing table. Free shipping in Germany for value of the ordered goods above 100.00 € (tax excl.).
