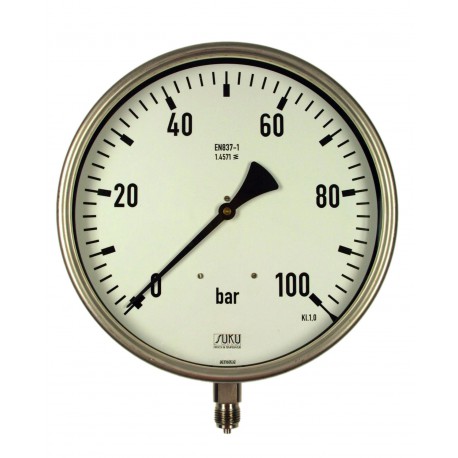

Type 5351 Pressure gauge with Bourdon tube NS250, connection bottom

Type 5351 Pressure gauge with Bourdon tube NS250, connection bottom

Datasheet 5351

Model Range: 5351

Pressure gauge with Bourdon tube according to EN 837-1
Case stainless steel

Accuracy class 1,0

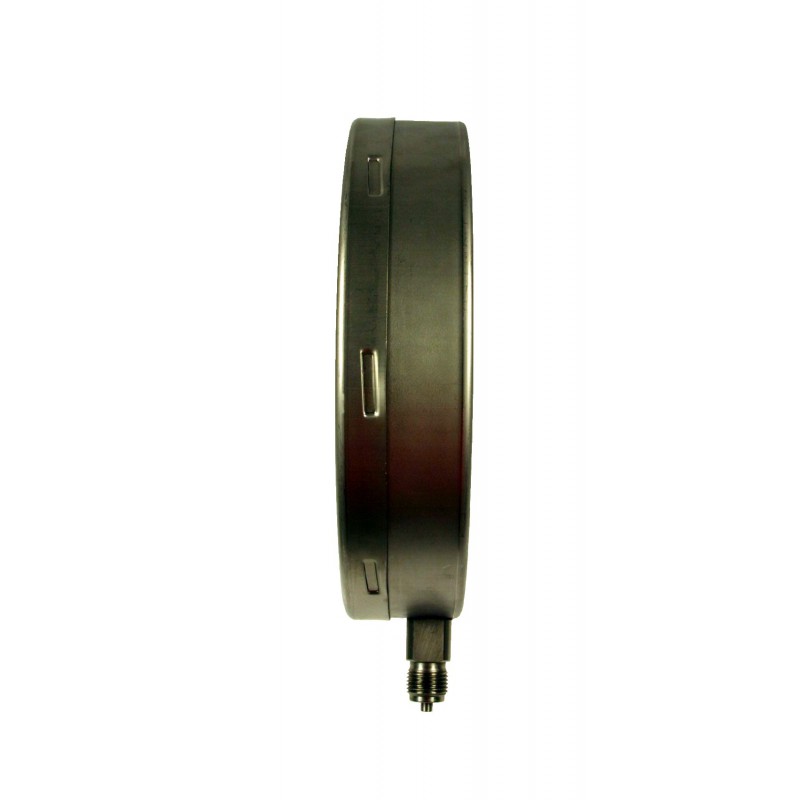

Connection bottom

Measuring ranges
0-0.6 bar up to 0-1,600 bar

Connection
G 1/2 B bottom, brass

A pressure gauge with bourdon tube for industrial use where particular importance is attached to measuring accuracy, reproducibility and long-term stability. That pressure gauge can be used in all apllications where liquid or gaseous media are not highly viscous and do not attack copper alloys or crystallize.

Price from

€627.25 *

Articlenumber Internal Variant Measuring Ranges (bar) Price
(incl. VAT *)
Standard -1...0 €627.25*
Standard 0...0,6 €627.25*
Standard 0...1 €627.25*
Standard 0...1,6 €627.25*
Standard 0...2,5 €627.25*
Standard 0...4 €627.25*
Standard 0...6 €627.25*
Standard 0...10 €627.25*
Standard 0...16 €627.25*
Standard 0...25 €627.25*
Standard 0...40 €627.25*
Standard 0...60 €671.40*
Standard 0...100 €671.40*
Standard 0...160 €671.40*
Standard 0...250 €671.40*
Standard 0...400 €671.40*
Standard 0...600 €671.40*
Standard 0...1000 €723.40*
  • * All prices here are inclusive 19% VAT.
  • ** 3-4 days delivery time
  • *** 2-10 weeks delivery time, production goods, non-returnable
  • For shipping prices look at our pricing table. Free shipping in Germany for any purchase above 100.00€.
