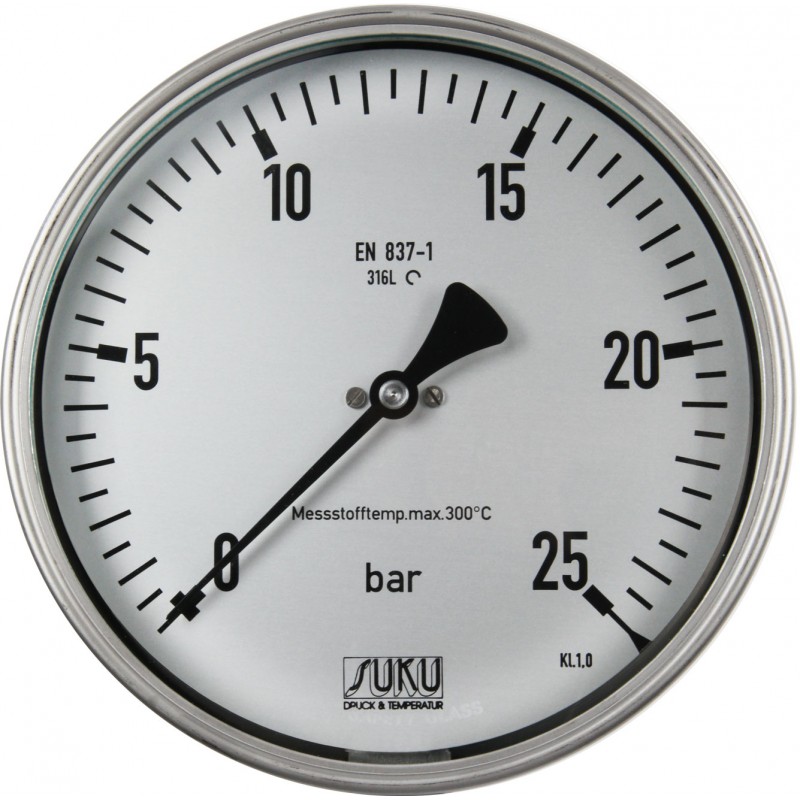

Type 6317, Bourdon tube pressure gauge NS160, all stainless steel, high-temperature up to 300°C
Model Range: 6317
Pressure gauge with Bourdon tube
Case stainless steel 1.4301 with Blow-out
Accuracy 1,0
Connection eccentric back
Medium temperature up to 300°C
Measuring range
0...0,6 bar up to 0...1600 bar
negative or positive overpressure
Connection thread
G 1/2 B eccentric back
other on request
OPTION
ATEX-approval
This bourdon tube pressure gauge in all stainless steel is designed for harsh conditions and to meet the stringent demands of pressure measurment in production plants of the chemical industry and in other comparable industrial sectors. It is useable at medium temperatures up to 300°C (572°F).
For an offer we need following specifications:
- Measuring range
- Connection (thread)
