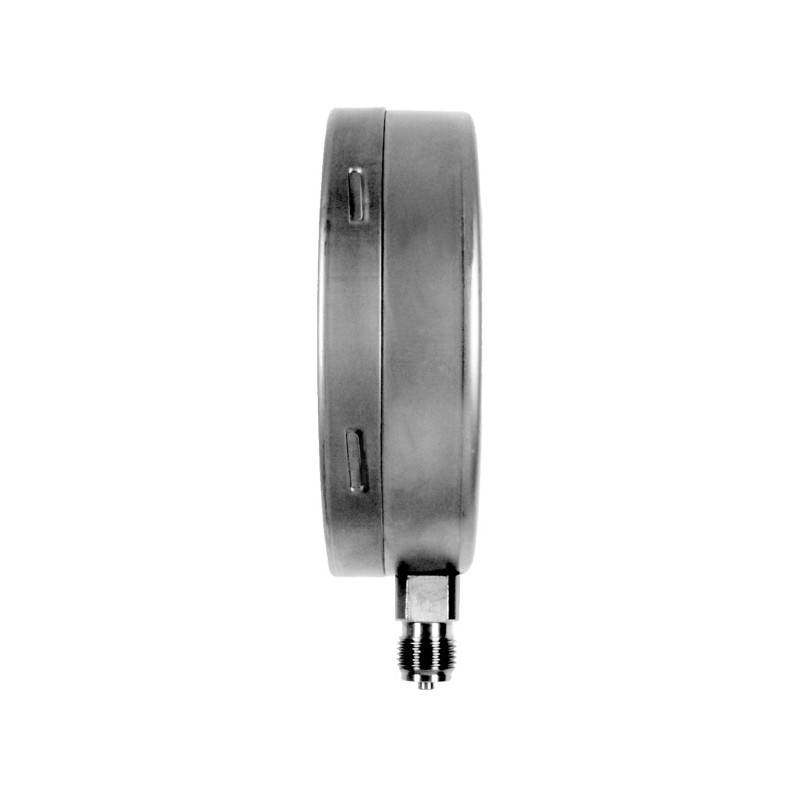

Type 6315, Bourdon tube pressure gauge NS160, all stainless steel, high-temperature up to 300 °C

Pressure gauge, industry, fillable, chemical

Datasheet 6315

Model Range: 6315

Pressure gauge with Bourdon tube
Case stainless steel 1.4301 with Blow-out
Accuracy 1,0
Connection bottom
Media temperatures up to 300°C

Measuring range
0...0,6 bar up to 0...1600 bar
negative or positive overpressure

Connection thread
G 1/2 B bottom

OPTION
ATEX-approval

This bourdon tube pressure gauge in all stainless steel is designed for harsh conditions and to meet the stringent demands of pressure measurment in production plants of the chemical industry and in other comparable industrial sectors. It is suitable for medium temperatures up to 300°C. Because of the high temperature it is not possible that instrument to produce with oil filling.

Price from

€314.40 *

Articlenumber Internal Variant Measuring Ranges (bar) Price
(incl. VAT *)
Medium temperature up to 300°C -1...0 €314.40*
Medium temperature up to 300°C -1...+15 €314.40*
Medium temperature up to 300°C 0...0,6 €314.40*
Medium temperature up to 300°C 0...1 €314.40*
Medium temperature up to 300°C 0...1,6 €314.40*
Medium temperature up to 300°C 0...2,5 €314.40*
Medium temperature up to 300°C 0...4 €314.40*
Medium temperature up to 300°C 0...6 €314.40*
Medium temperature up to 300°C 0...10 €314.40*
Medium temperature up to 300°C 0...16 €314.40*
Medium temperature up to 300°C 0...25 €314.40*
Medium temperature up to 300°C 0...40 €314.40*
Medium temperature up to 300°C 0...60 €354.03*
Medium temperature up to 300°C 0...100 €354.03*
Medium temperature up to 300°C 0...160 €354.03*
Medium temperature up to 300°C 0...250 €354.03*
Medium temperature up to 300°C 0...400 €354.03*
Medium temperature up to 300°C 0...600 €354.03*
Medium temperature up to 300°C 0...1000 €394.25*
Medium temperature up to 300°C 0...1600 €472.67*
  • * All prices here are inclusive 19% VAT.
  • ** 3-4 days delivery time
  • *** 2-10 weeks delivery time, production goods, non-returnable
  • For shipping prices look at our pricing table. Free shipping in Germany for value of the ordered goods above 100.00 € (tax excl.).
