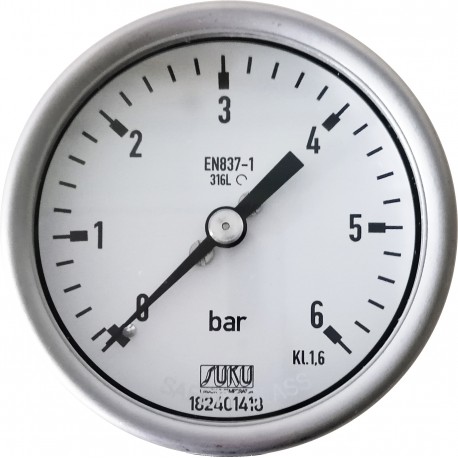

Type 6031, Bourdon tube pressure gauge NS63, all stainless steel, connection back

Model Range: 6031

Pressure gauge with Bourdon tube
all stainless steel 1.4301
Accuracy 1,6 (> 600 bar accuracy 2,5)

Connection back

Measuring range
0...0,6 bar up to 0...1000 bar
negative or positive overpressure

Connection size
G 1/4 B

OPTION
High temperature up to 300°C

These all stainless steel pressure gauges are designed for harsh conditions and to meet the stringent demands of pressure measurement in production plants of the chemical industry and in other comparable industrial sectors. The use of high quality materials such as stainless steel, both for the measuring system and case, provides resistance to aggressive media and environments.

This type is as type 6033 also with glycerine filling available.

Price from

€70.20 *

Articlenumber Internal Variant Measuring Ranges (bar) Price
(incl. VAT *)
Standard -1...0 €70.20 *
Standard -1...+0,6 €70.20 *
Standard -1...+1,5 €70.20 *
Standard -1...+3 €70.20 *
Standard -1...+5 €70.20 *
Standard -1...+9 €70.20 *
Standard -1...+15 €70.20 *
Standard 0...0,6 €70.20 *
Standard 0...1 €70.20 *
Standard 0...1,6 €70.20 *
Standard 0...2,5 €70.20 *
Standard 0...4 €70.20 *
Standard 0...6 €70.20 *
Standard 0...10 €70.20 *
Standard 0...16 €70.20 *
Standard 0...25 €70.20 *
Standard 0...40 €70.20 *
Standard 0...60 €70.20 *
Standard 0...100 €85.20 *
Standard 0...160 €85.20 *
Standard 0...250 €85.20 *
Standard 0...400 €85.20 *
Standard 0...600 €85.20 *
Standard 0...1000 €102.70 *
