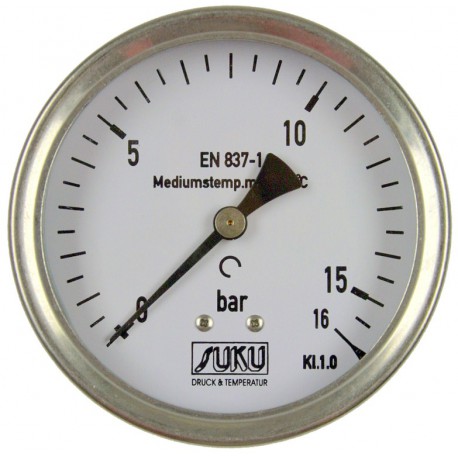

Type 5341, Pressure gauge with Bourdon tube NS100, connection back, stainless steel

Type 5341, Pressure gauge with Bourdon tube NS100, connection back, stainless steel

Datasheet 5341

Model Range: 5341

Pressure gauge with Bourdon tube according to DIN EN 837-1
Case stainless steel 1.4301
Accuracy class 1.0

Measuring ranges
0-0.6 bar up to 0-1,000 bar
negative or positive overpressure

Connection
G 1/2 B back eccentric

OPTION
Medium temperature up to 130°C

A bourdon tube pressure gauge for use in the industry where particular importance is attached to measuring accuracy, reproducibility and long-term stability.

Price from

€91.87 *

Articlenumber Internal Variant Measuring Ranges (bar) Price
(incl. VAT *)
Standard -1...0 €91.87*
Standard -1...+0,6 €91.87*
Standard -1...+5 €91.87*
Standard -1...+15 €91.87*
Standard 0...0,6 €91.87*
Standard 0...1 €91.87*
Standard 0...1,6 €91.87*
Standard 0...2,5 €91.87*
Standard 0...4 €91.87*
Standard 0...6 €91.87*
Standard 0...10 €91.87*
Standard 0...16 €91.87*
Standard 0...25 €91.87*
Standard 0...40 €91.87*
Standard 0...60 €139.47*
Standard 0...100 €139.47*
Standard 0...160 €139.47*
Standard 0...250 €139.47*
Standard 0...400 €139.47*
Standard 0...600 €139.47*
Standard 0...1000 €164.82*
  • * All prices here are inclusive 19% VAT.
  • ** 3-4 days delivery time
  • *** 2-10 weeks delivery time, production goods, non-returnable
  • For shipping prices look at our pricing table. Free shipping in Germany for value of the ordered goods above 100.00 € (tax excl.).
