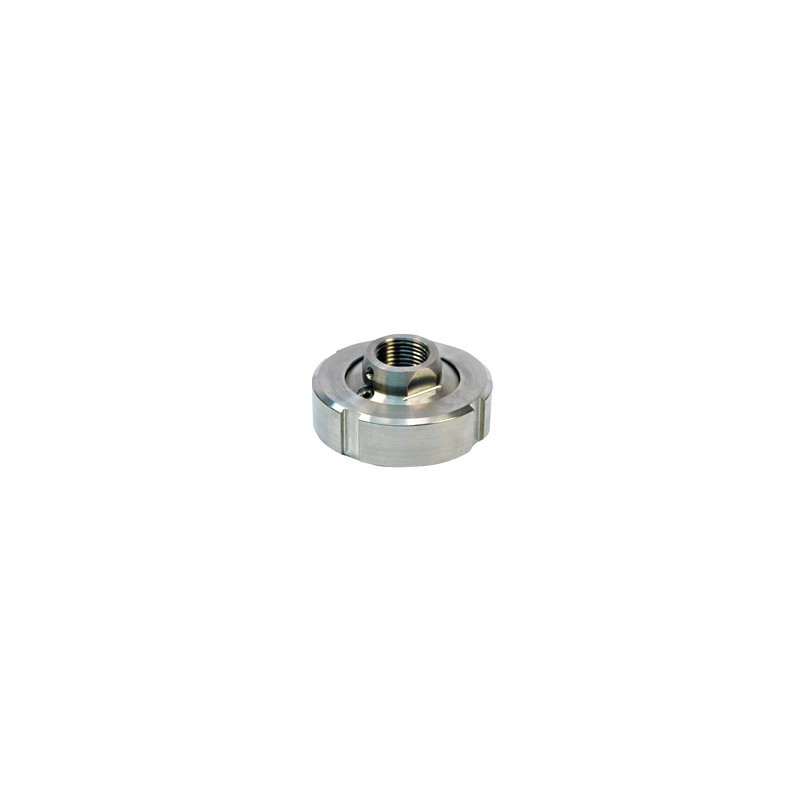

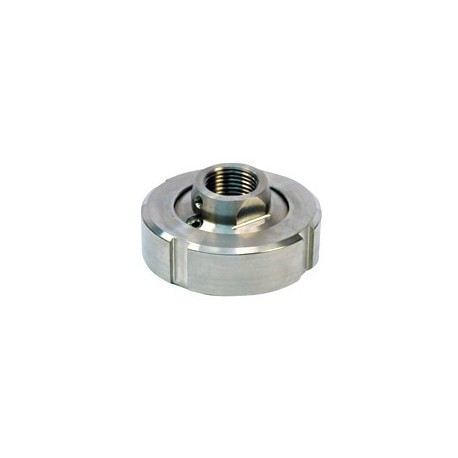

Type 1030, Diaphragm type chemical seal with quick coupling
Model Range: 1030
Diaphragm type chemical seal
with "Quick coupling"
Rated pressure max. PN 40
Version
Upper body: stainless steel 1.4571
Diaphragm: stainless steel 1.4571
with upper body welded
Seal: NBR (Perbunan)
Filling: Glycerine/water, FFL–No. 6
Pressure ranges
0...0,6 bar up to 0...40 bar
Process connection
with union nut
DIN 11 851
DN 25 / DN 32 / DN 40 / DN 50
Instrument connection
G 1/4 at DN 25
G 1/2 at DN 32 up to DN 50
and 1 1/2" up to 3"
Diaphragm seals can only be supplied installed on a pressure gauge. It arise costs for installation.
